INDUSTRIAL GATE CHAIN MESH + 3 BARB WIRES (25nb)

Name: INDUSTRIAL GATE CHAIN MESH + 3 BARB WIRES (25nb)
SKU: GNR182503 - GNR182514
Availability: InStock

Gates are priced as SINGLE GATE only.

Hand Hole, Drop Bolt and Chain included. Total Height = 2.275m.

*3.15mm x 50mm Chain Mesh Option Available.

MATERIALS USED

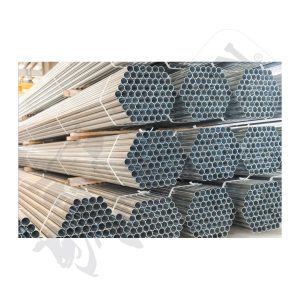

Steel Frame, Struts and Bar: 25nb (33.7mm O.D.) Galvanised Pipe.

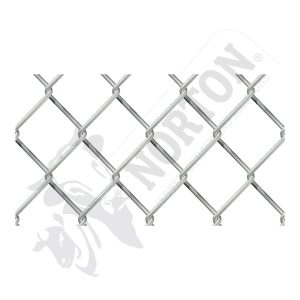

Chain Mesh: 50mm x 2.5mm Galvanised.

Barb Wire: 3 Rows x 1.57mm.

* All gates are supplied RHS unless otherwise specified, and include a Collar for hinging.

IDEAL FOR

Factory, industrial and car yards.

ODD SIZE GATES

Please note a Surcharge will apply to any ODD SIZE GATE made to order. E.g. 12’5″ gate will be charged at the next size up (13′) plus the Surcharge.

PART NO.	SIZE METRIC (OPENING)	SIZE IMP. (OPENING)	HEIGHT	STRUTS/STAY/S
GNR182503	0.915m	3ft	1.8m + Barb
GNR182504	1.220m	4ft	1.8m + Barb
GNR182505	1.525m	5ft	1.8m + Barb
GNR182506	1.830m	6ft	1.8m + Barb	1
GNR182507	2.135m	7ft	1.8m + Barb	1
GNR182508	2.440m	8ft	1.8m + Barb	1
GNR182509	2.745m	9ft	1.8m + Barb	1
GNR182510	3.050m	10ft	1.8m + Barb	1
GNR182511	3.355m	11ft	1.8m + Barb	2
GNR182512	3.660m	12ft	1.8m + Barb	2
GNR182513	3.965m	13ft	1.8m + Barb	2
GNR182514	4.270m	14ft	1.8m + Barb	3

Click Enquire to make a quick enquiry about a specific Part No. or just click the Add to Enquiry Cart button to add this range to a general enquiry cart.
