FARM GATE CHAIN MESH 25nb

Name: FARM GATE CHAIN MESH 25nb
SKU: GNR181003 - GNR181016, GNR186003 - GNR186004
Availability: InStock

* ACCESS GATES COME COMPLETE WITH HAND HOLE, SLIDE BOLT FITTINGS & COLLAR FOR HINGING

MATERIALS USED

Steel Frame and Struts: 25nb (33.7mm O.D.) Galvanised Pipe.

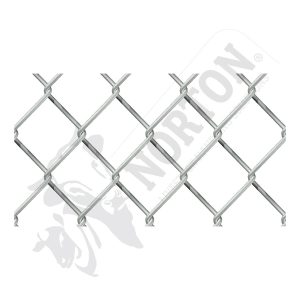

Chain Mesh: 50mm x 2.5mm Galvanised.

*All Access Gates are supplied as RHS unless otherwise specified.

IDEAL FOR

Entrance gate, dog pens, poultry pens and house yards.

ODD SIZE GATES

Please note a Surcharge will apply to any ODD SIZE GATE made to order. E.g. 12’5″ gate will be charged at the next size up (13′) plus the Surcharge. Gates narrower than 3ft opening will be made as square tops only.

PART NO.	SIZE METRIC (OPENING)	SIZE IMP. (OPENING)	HEIGHT	STRUT/S
GNR181003	0.915m	3ft	1.200m
GNR181004	1.220m	4ft	1.200m
GNR181005	1.525m	5ft	1.200m
GNR181006	1.830m	6ft	1.200m	1
GNR181007	2.135m	7ft	1.200m	1
GNR181008	2.440m	8ft	1.200m	1
GNR181009	2.745m	9ft	1.200m	1
GNR181010	3.050m	10ft	1.200m	1
GNR181011	3.355m	11ft	1.200m	2
GNR181012	3.660m	12ft	1.200m	2
GNR181013	3.965m	13ft	1.200m	2
GNR181014	4.270m	14ft	1.200m	2
GNR181015	4.570m	15ft	1.200m	3
GNR181016	4.875m	16ft	1.200m	3

OPTIONAL EXTRA

PART NO.	OPTIONAL - Extra Charge
GNR199002	Hand Hole and Slide Bolt

ACCESS GATES

	PART NO.	SIZE METRIC (OPENING)	SIZE IMP. (OPENING)	HEIGHT
	186003	0.915m	3ft	1.800m
	186004	1.220m	4ft	1.800m

Click Enquire to make a quick enquiry about a specific Part No. or just click the Add to Enquiry Cart button to add this range to a general enquiry cart.
